VISOR® Object Advanced

V10C-OB-A3-W-N-M2-L

Order code:

V10C-OB-A3-W-N-M2-L

Order number:

631-91002

Short description:

VISOR® V10 Object Color, Advanced, 255 jobs each with 255 detectors, white illumination, narrow field of view, motorized focus, LAN interface

Description

Applications

Detecting objects
Measurement
Counting

255 jobs with 255 detectors each

Alignment: X/Y and orientation
Pattern matching/contours: Teach-in and detection of patterns and contours
Caliper: Distance between edges
BLOB, gray threshold, brightness: Evaluation of brightness
Contrast: Evaluation of the contrast

Opticial data
Image chip type	Color
Light source	LED
Light color	White
Wavelength [°K]	4,500
LED risk category [RG]	1
Explanation of risk category	Acc. to EN 62471
Resolution	SVGA
Number of pixels (H x V) [px]	800 x 600
Imaging chip technology	CMOS
Sensor size ["]	1/3.6
Pixel size [µm]	4.80
Field of view type	Narrow
Focal length [mm]	20.0
Opening angle [°]	10.0
Min. field of view (X x Y) [mm]	14 x 11
Aperture number	2.8
Depth of field	Standard
Focus drive	Motorized
Target laser	Laser red (655 nm)
Laser class	1 (IEC 60825-1)

Functions
Network protocol	TCP/IP, Profinet, EtherNet/IP, sFTP, SMB, FTP, Service Port
Max. number of jobs	255
Max. number of detectors	255
Alignment	Contour comparison, Pattern matching, Edge detection
Available detectors	Pattern matching, Contour, Contour check, BLOB, Brightness, Contrast, Grayscale, Color value, Color area, Caliper, Color list
Result processing	Numbers
Pre-processing	Arrangement, Filter
Calibration	Board (measurement), Scaling (measurement)
Robotic functions	-
Additional functions	Archiving, Image transmission, individual overlays, Multiple image acquisition, Color channel, color distance and binarization, Multiple detection for contour and pattern matching detector, Job checksum
Hardware	VISOR®

Electronic data
Typical current draw [mA]	350
Type of voltage source	The device must be supplied by a "Class 2" power supply unit.
Readiness delay [ms]	≤ 16,000
Reverse polarity protection	Yes
Overvoltage protection	No
Residual ripple [%]	≤ 5 Vss, level 3
Explanation of residual ripple	EN 61000-4-17
Polarity	PNP/NPN
Short circuit protection	Yes
Input threshold (High)	> UB-1V
Input threshold (Low)	< 3V
Input resistance [kΩ]	> 20
Max. output current [mA]	50
Explanation of max. output current	max. 100 mA on pin 12
Inductive loads	Typ.: Relay 17 K / 2 H, pneumatic valve 1.4 K / 190 mH
Max. output current (total) [mA]	200
Ethernet transmission rate [Mbit/s]	100
Number of switchable IOs	6
Number of outputs	2
Number of inputs	2
Encoder functions	Yes

Mechanical data
Height [mm]	85.0
Length [mm]	45.0
Width [mm]	45.0
Weight [g]	~ 220
Front panel material	PMMA
Housing material	Aluminum (cast)
Connection name	Supply
- Number of pins	12
- Coding	A
- Thread	M12x1
- Material	Metal
- Type	Plug
Connection name	LAN
- Number of pins	4
- Coding	D
- Thread	M12x1
- Material	Metal
- Type	Socket
Explanation of ambient temperature: storage	< 95 % humidity, non-condensing
Protection class	IP 65, IP 67
Explanation of protection class	For C-mount devices, only in combination with protective tube
Vibration and shock resistance	EN 60068-2-6, EN 60068-2-27

Classification Reference Features
Sensor (image analysis)	27310205	ECLASS 10.1
Sensor (image analysis)	27310205	ECLASS 11.0
Sensor (image analysis)	27310205	ECLASS 11.1
Sensor (image analysis)	27310205	ECLASS 12.0
Sensor (image analysis)	27310205	ECLASS 13.0

VISOR® Operating Instructions - DE|EN|ES|FR|IT|ZH Documentation for VISOR® (pdf, 2.00 MB)

Download

V10C-OB-A3-W-N-M2-L Technical data sheet

Portuguese pdf, 1.57 MB

15313554_visor_ng_smount_cad.zip CAD (zip, 584.41 KB)

Download

VISOR® Communications Manual Documentation for VISOR®

VISOR® User Manual Documentation for VISOR®

Download

German pdf, 30.94 MB

Download

English pdf, 30.94 MB

Download

French pdf, 31.07 MB

Download

Chinese pdf, 31.33 MB

Download

VISOR_Firmware_V2_10_2_2_0219.vis VISOR® Firmware (vis, 56.15 MB)

Download

Product overview VISOR® - Vision sensors for factory automation Brochure

VISOR® Software V2.10.2.1 - 64bit VISOR® PC software (exe, 1.08 GB)

Download

MB 035

Manfrotto 035 universal clamp

MG 244

Manfrotto 244 Mounting Hinge

MS 244-035

Manfrotto Set with MG 244 and MB 035

ZAP 30

Alignment plate, 30 mm. mounting holes, adhesive pads

MK 45

Mounting, Dovetail mounting bracket, camera or LF45 xx

MA 45

Mounting, Camera Bracket

MB 45

Mounting, Block rod camera

MP 45

Mounting, Plate for camera

MZ 45

Mounting, Adapter for rods

MST 45-20

Mounting, Rod 20 cm camera

MST 45-30

Mounting, Rod 30 cm camera

MST 45-40

Mounting, Rod 40 cm camera

MG 45

Mounting, Hinge camera

MA 45 L

Mounting, Camera Bracket long

MA LR-100/112

Fixing bracket ring light, diameter 100 mm

MA LR-18/112

Fixing bracket ring light, diameter 18 mm

MA LR-26/112

Fixing bracket ring light, diameter 26 mm

MA LR-50/112

Fixing bracket ring light, diameter 50 mm

MA LR-23/112

Fixing bracket ring light, diameter 23 mm

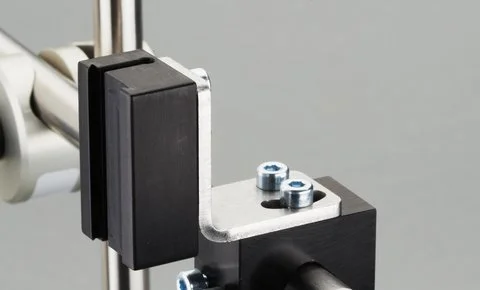

MK 45 L

Mounting, Long Dovetail mounting bracket, V10/V20/V50 or LF45 xx

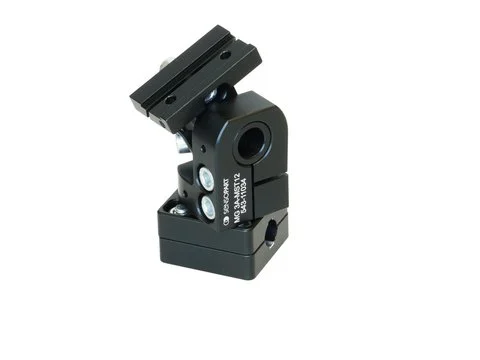

MG 3A
