Application example
When assembling vehicles, sheet metal parts and / or plastic parts must be connected to one another. These are often assembled with clips which the parts are screwed or plugged together.
The clips are attached by hand and can be forgotten by the worker during assembly. The aim of the application is therefore to check a component for the presence and completeness of clips before the next part is assembled.
Raw image
The metal clip shown has a different grey value to the component. VISOR® Object offers diverse solutions for this purpose, e.g. grey value detector.
With good contrast, it is also possible to check the position and angle of the clips. In this case, a contour detector searches for the clip and checks that it is present and correctly positioned.
Clip is missing

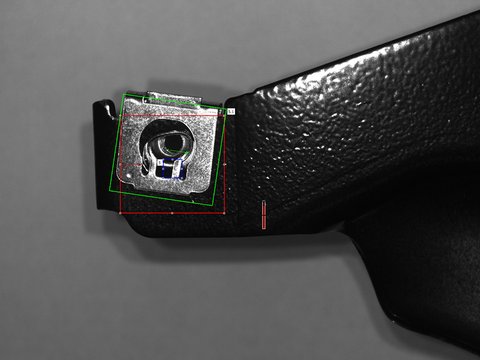

The clip was not put on correctly.
The clip has been inserted correctly.
