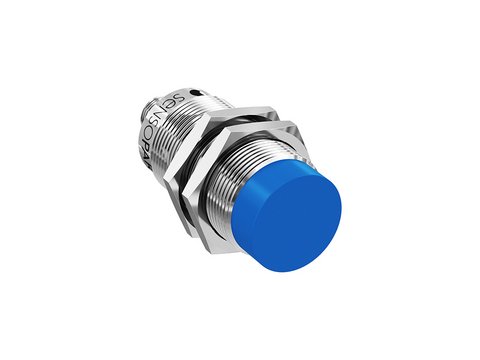

IMT 30-S-NB2-PSL-L4M

IMT 30 - standard switching distance

Product variant:

Order code:

IMT 30-S-NB2-PSL-L4M

Order number:

996-01013

Short description:

Inductive sensor M30 / standard switching distance

Description

  • Various parameterization options
  • IO-Link 1.1

Product data

Rated operating distance Sn [mm]
25
Repeatability [mm]
0,75
Interface
IO-Link
Velocity [Hz]
≤ 200
Mounting
Non-flush
Housing
Brass, chrome-pated
Series
M30
Type
Barrel type
Switching output
PNP
Temperature range [°C]
-25 ... +70
Connection type
Metal plug M12, 4-pin
Enclosure rating
IP 67

Accessories

L4/L4-2m-PUR

M12 socket, 4-pin, straight, to M12 plug, 4-pin, straight, length 2 m, a-coded, PUR, IP 65, IP 67, IP 68, IP 69

L4/L4-5m-PUR

M12 socket, 4-pin, straight, to M12 plug, 4-pin, straight, length 5 m, a-coded, PUR, IP 65, IP 67, IP 68, IP 69

L4-300mm-G-PUR

M12 socket, 4-pin, straight, open ends, length 0,3 m, a-coded, PUR, IP 65, IP 67, IP 69

L4-2m-G-PUR

M12 socket, 4-pin, straight, open ends, length 2 m, a-coded, PUR, IP 65, IP 67, IP 68

L4-2m-W-PUR

M12 socket, 4-pin, 90° angled, open ends, 4-wire, length 2 m, a-coded, PUR, IP 65, IP 67, IP 68

L4-2m-W-PL-PUR

M12 socket, 4-pin, 90° angled, open ends, 4-wire, length 2 m, a-coded, PUR, with indicator LED, IP 65, IP 67, IP 68

L4-5m-G-PUR

M12 socket, 4-pin, straight, open ends, length 5 m, a-coded, PUR, IP 65, IP 67, IP 68

L4-5m-W-PUR

M12 socket, 4-pin, 90° angled, open ends, 4-wire, length 5 m, a-coded, PUR, IP 65, IP 67, IP 68

L4-5m-W-PL-PUR

M12 socket, 4-pin, 90° angled, open ends, length 5 m, a-coded, PUR, with indicator LED, IP 65, IP 67, IP 68

L4-10m-G-PUR

M12 socket, 4-pin, straight, open ends, length 10 m, a-coded, PUR, IP 65, IP 67, IP 68

L4-10m-W-PL-PUR

M12 socket, 4-pin, 90° angled, open ends, 4-wire, length 10 m, a-coded, PUR, with indicator LED, IP 65, IP 67, IP 68

L4-15m-W-PL-PUR

M12 socket, 4-pin, 90° angled, open ends, 4-wire, length 15 m, a-coded, PUR, with indicator LED, IP 65, IP 67, IP 68

L4S-2m-G-PVC

M12 socket, 4-pin, straight, open ends, 4-wire, length 2 m, a-coded, PVC, IP 67

L4S-5m-G-PVC

M12 socket, 4-pin, straight, open ends, 4-wire, length 5 m, a-coded, PVC, IP 67

L4S-2m-W-PVC

M12 socket, 4-pin, 90° angled, open ends, 4-wire, length 2 m, a-coded, PVC, IP 67

L4S-5m-W-PVC

M12 socket, 4-pin, 90° angled, open ends, 4-wire, length 5 m, a-coded, PVC, IP 67

CL4 FG-E-5m-PVC

M12 socket, 4-pin, straight, open ends, 4-wire, length 5 m, PVC, IP 67, IP 69

CL4 FW-E-5m-PVC

M12 socket, 4-pin, 90° angled, open ends, 4-wire, length 5 m, PVC, IP 67, IP 69
