Typical inductive sensors Back to the Overview

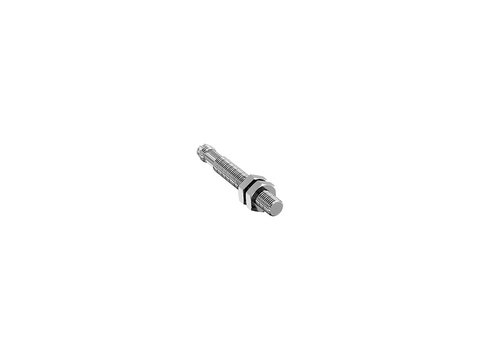

IMT 8-FM-S-B2-PSL-M3M

IMT 8 - factor 1

Product variant:

Order code:

IMT 8-FM-S-B2-PSL-M3M

Order number:

996-01025

Short description:

Inductive sensor M8 / all-metal housing / factor 1

Description

  • One-piece full stainless-steel housing
  • Long operating range
  • Factor 1 sensor on steel and aluminium
  • Extremely robust
  • Pressure-tight / watertight IP 68 / IP 69K
  • IO-Link 1.1

Product data

Rated operating distance Sn [mm]
3
Repeatability [mm]
0.12
Interface
IO-Link
Velocity [Hz]
≤ 1200
Mounting
Flush
Housing
Stainless steel
Series
M08
Type
Barrel type
Switching output
PNP
Temperature range [°C]
-25 ... +85
Connection type
Metal plug M8, 3-pin
Enclosure rating
IP68, IP69K

Accessories

K3-2m-G-PUR

M8 socket, 3-pin, straight, open ends, 3-wire, length 2 m, a-coded, PUR, IP 65, IP 67

K3-2m-W-PUR

M8 socket, 3-pin, 90° angled, open ends, 3-wire, length 2 m, a-coded, PUR, IP 67, IP 69

K3-2m-W-PL-PUR

M8 socket, 3-pin, 90° angled, open ends, 3-wire, length 2 m, a-coded, PUR, with indicator LED

K3-5m-G-PUR

M8 socket, 3-pin, straight, open ends, 3-wire, length 5 m, a-coded, PUR, IP 65, IP 67

K3-5m-W-PUR

M8 socket, 3-pin, 90° angled, open ends, 3-wire, length 5 m, a-coded, PUR, IP 67, IP 69

K3-5m-W-PL-PUR

M8 socket, 3-pin, 90° angled, open ends, 3-wire, length 5 m, a-coded, PUR, with indicator LED

K3-10m-G-PUR

M8 socket, 3-pin, straight, open ends, 3-wire, length 10 m, a-coded, PUR, IP 65, IP 67

K3-10m-W-PL-PUR

M8 socket, 3-pin, 90° angled, open ends, 3-wire, length 10 m, a-coded, PUR, with indicator LED, IP 67, IP 69

K3/L4-2m-PUR

M8 socket, 3-pin, straight, to M12 plug, 4-pin, straight, length 2 m, a-coded, PUR, IP 67, IP 69

K3/L4-5m-PUR

M8 socket, 3-pin, straight, to M12 plug, 4-pin, straight, length 5 m, a-coded, PUR, IP 67, IP 69
